MSBuild Binary and Structured Log Viewer
or, install the Visual Studio 2017 Extension to investigate builds inside Visual Studio:
Using MSBuild.exe /bl to record a binary log

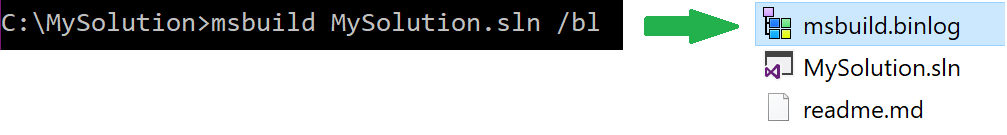

MSBuild 15.3 introduces a new command-line switch: /bl to record all build events to a structured/binary log file:

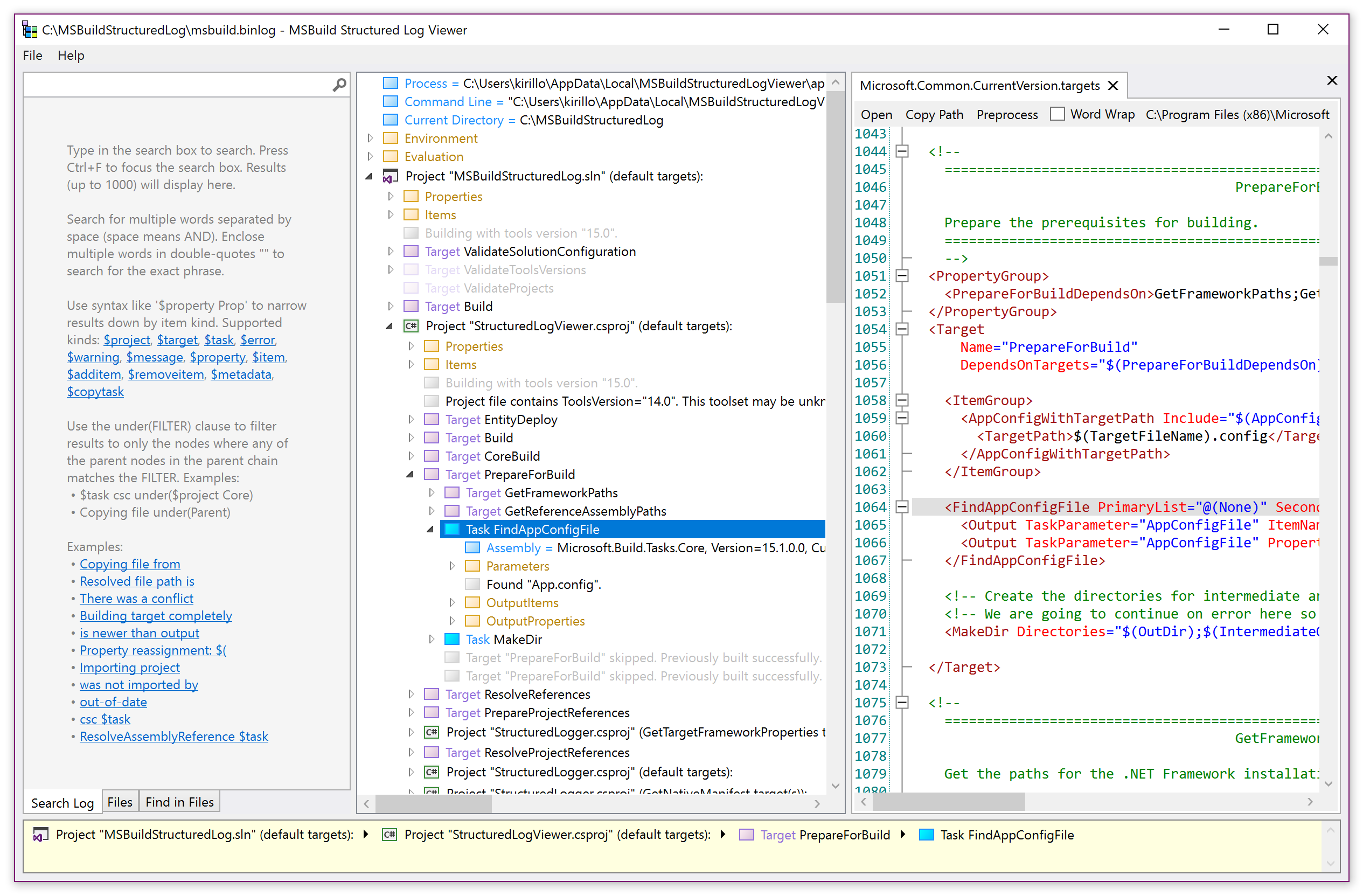

Double-click the .binlog file to open it in MSBuild Structured Log Viewer:
Replaying a .binlog to reconstruct text logs
You can pass a .binlog file to MSBuild instead of a project/solution to replay it to other loggers, as if a real build was happening. This allows you to reconstruct a text log of any verbosity given the .binlog file. Read more at: https://github.com/Microsoft/msbuild/wiki/Binary-Log#replaying-a-binary-log
Binary log advantages
Read more about the new MSBuild binary log format (*.binlog)
- Completeness - records the exact events in order they happened during the build. You can replay a binary log into other loggers to reconstruct full text logs. Pass the .binlog file to MSBuild.exe instead of a project/solution to replay the log as if the original build was happening.
- Verbosity - binary logs capture more information than even the most diagnostic-level text logs. The binary logger turns on various MSBuild switches to output more information, such as task inputs and target outputs.
- Faster builds - less overhead than a text log, can make builds significantly faster if other logs are disabled. They can be reconstructed later anyway if needed.
- Smaller disk size - a binary log is much smaller in size than a corresponding diagnostic-level text log (10-20x or more). This can result in significant storage savings on CI servers.
- Easier to read/analyze - text logs (especially from multi-processor builds) can become unwieldy, intertwined and hard to read. The viewer allows to collapse unneeded sections, as well as intelligent search.
- Programmatic access - All information is easily accessible programmatically for tools such as analyzers (whereas you need to parse text logs yourself and it's hard without a clearly defined structure) A .NET API is available to load and query binary logs.
- Embedded source files - optionally embed the source text of all project files and imported targets files used during the build, so it is possible to correlate log events with the source code. Preprocessed view (with all imports inlined) is available for each file (like /pp).

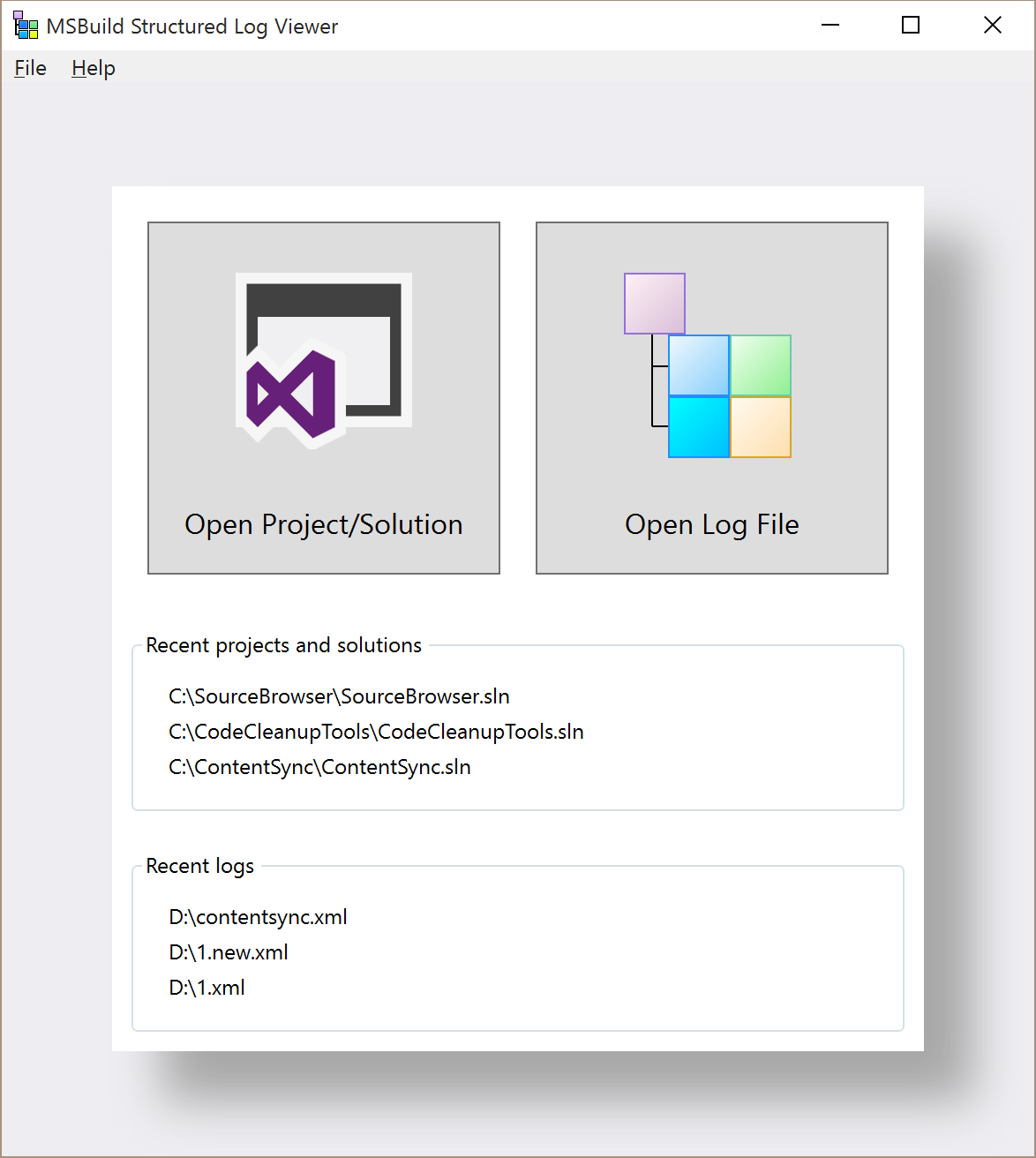

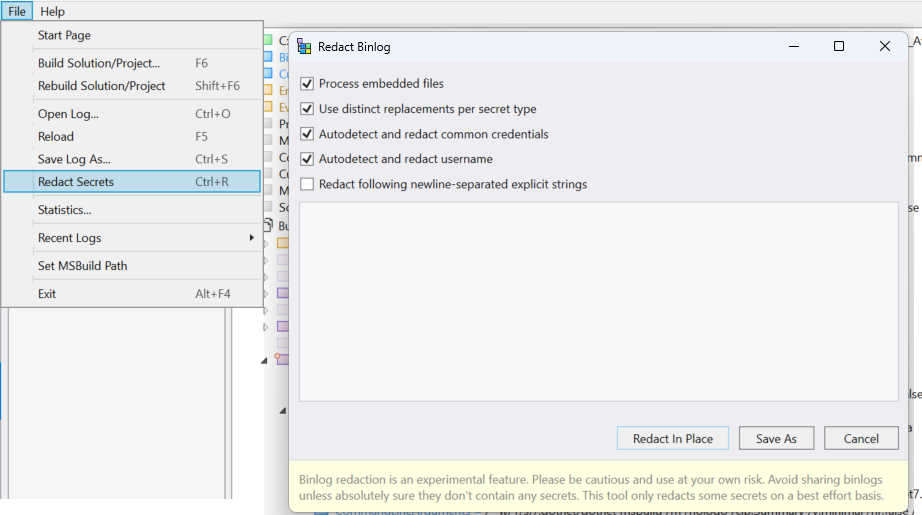

The MSBuild Structured Log Viewer can build projects and solutions or open existing log files:

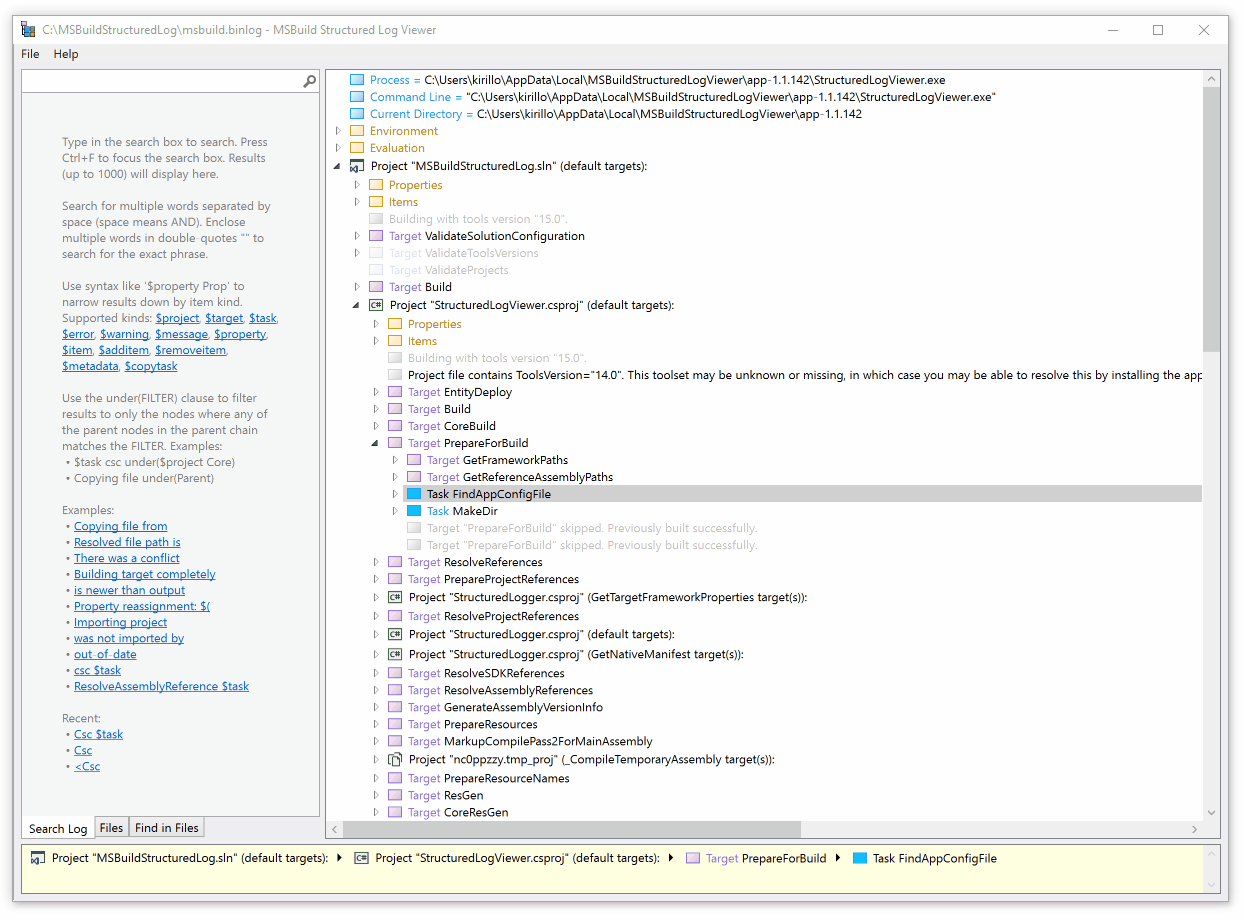

Leverage the source code of projects and targets embedded in the log file:
The viewer supports three file formats:
- *.binlog (official MSBuild binary log format, produced by msbuild.exe /bl
- *.buildlog (when you Save As... in the viewer)
- *.xml (for large human-readable XML logs)
The viewer can read all 3 formats and can save to either *.buildlog or *.xml.
See here for the list of viewer features
Command-line help for the /bl switch
See MSBuild command-line help msbuild /? for more information on the /bl switch. The switch is available starting with MSBuild 15.3 (Visual Studio 2017 Update 3 or newer).
Serializes all build events to a compressed binary file.
By default the file is in the current directory and named
"msbuild.binlog". The binary log is a detailed description
of the build process that can later be used to reconstruct
text logs and used by other analysis tools. A binary log
is usually 10-20x smaller than the most detailed text
diagnostic-level log, but it contains more information.
(Short form: /bl)
The binary logger by default collects the source text of
project files, including all imported projects and target
files encountered during the build. The optional
ProjectImports switch controls this behavior:
ProjectImports=None - Don't collect the project
ProjectImports=Embed - Embed project imports in the
ProjectImports=ZipFile - Save project files to
where output is the same name
as the binary log file name.
The default setting for ProjectImports is Embed.
Note: the logger does not collect non-MSBuild source files
such as .cs, .cpp etc.
A .binlog file can be "played back" by passing it to
msbuild.exe as an argument instead of a project/solution.
Other loggers will receive the information contained
in the log file as if the original build was happening.
You can read more about the binary log and its usages at:
Recording a binary log with older versions of MSBuild
The built-in /bl switch was only introduced in MSBuild 15.3 (Visual Studio 2017 Update 3). However there is a way to record a binary log with previous versions of MSBuild as well. You can attach the logger to any MSBuild-based build using the logger library: StructuredLogger.dll. It is available in a NuGet package:
Alternatively, you can download StructuredLogger.dll directly from the releases page at: https://github.com/KirillOsenkov/MSBuildStructuredLog/releases
Use a command-line such as this to pass the BinaryLogger to MSBuild:
msbuild solution.sln /t:Rebuild /v:diag /noconlog /logger:BinaryLogger,%localappdata%\MSBuildStructuredLogViewer\app-1.2.5\StructuredLogger.dll;1.binlog
To use a portable version of the logger (e.g. with the dotnet msbuild command) you need a .NET Standard version of StructuredLogger.dll, not the .NET Framework (Desktop) version. Inside the NuGet package there is the lib\netstandard1.5\StructuredLogger.dll. Try passing that to dotnet build like this:
dotnet msbuild Some.sln /v:diag /nologo /logger:BinaryLogger,"packages\Microsoft.Build.Logging.StructuredLogger.1.2.5\lib\netstandard1.5\StructuredLogger.dll";"C:\Users\SomeUser\Desktop\binarylog.binlog"
Investigating IDE and design-time builds inside Visual Studio
Use the Project System Tools Visual Studio extension to record binary logs of IDE and design-time builds.
See more information about design-time builds here:
Source code on GitHub
The MSBuild Structured Log Viewer project is open-source on GitHub at:
This webpage is also open-source at:
